M CARDER C-2 1" X 1" DUAL SWIVEL
,

M CARDER C-2 1″ X 1″ DUAL SWIVEL

Original price was: $95.63.Current price is: $73.05.

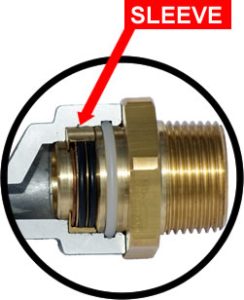

The construction of our new C1-2013 multi-plane swivel makes a dramatic departure from the standard practice in the industry. To provide the best surfaces from the O-ring seals to rotate on we have inserted a precisely machined sleeve into the aluminum castings. The sleeve is made from solid brass bar stock… the same material we use with the extremely successful single plane swivels.

The results… the swivel will turn easily and will not leak. The machined surfaces of all swivel castings have porosity (tiny holes). These holes cause wear on the O-rings when the swivel rotates. A sealant is required to fill the holes to attempt to stop leaks. The SLEEVE eliminates both problems.

- +
SKU: AC1010 Categories: ,
Guaranteed Safe Checkout

M Carder Performance Advantages

  • Brass male end will not gall in nozzle castings
  • Dual O-rings seal with all fuels
  • Machined Brass sleeve gives smooth seal surface – NO LEAKS
  • Internal nylon retainer cord secures firmly, but allows for free rotation
Swivel Specifications Construction Specifications
Inlet: NPT or BSPP

Seals: Viton *

Working Pressure: 50 PSI max

Model AC3434: Size 3/4″ x 3/4″

Model AC1034: Size 1″ x 3/4″

 Body: Machined Aluminum Casting

Male end: Machined Brass bar stock

Sleeve: Machined Brass bar stock
* Cold Climate Seals Available Shipping and packing
The swivels are Individually boxed and packed 20 to 50 per master carton.


Weight 1 lbs
